Glass fiber

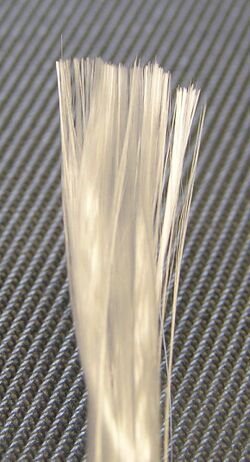

Glass fiber roving

Glass fiber is a material consisting of numerous extremely fine fibers of glass. It is a versatile industrial material that is used in a wide variety of applications, including composite materials, insulation, and filtration.

Composition and Properties

Glass fibers are made from silica (SiO2) and other compounds, which are melted and then extruded through fine holes to form fibers. These fibers are then woven into fabrics or used as reinforcement in composite materials. The properties of glass fiber include high tensile strength, low weight, and resistance to chemical and environmental damage.

Types of Glass Fiber

There are several types of glass fiber, each with specific properties and uses:

• E-glass: The most common type, used in fiberglass and reinforced plastics.
• S-glass: Known for its high strength, used in aerospace and military applications.
• C-glass: Used for chemical resistance applications.

Applications

Glass fiber is used in a variety of applications due to its strength and versatility:

• Composite materials: Glass fiber is often used as a reinforcement material in composites, such as fiberglass, which is used in automotive, marine, and construction industries.
• Insulation: Glass wool, made from glass fibers, is used for thermal and acoustic insulation in buildings.
• Filtration: Glass fiber filters are used in air filtration and liquid filtration systems.

Manufacturing Process

The manufacturing process of glass fiber involves several steps:

1. Melting: Raw materials are melted in a furnace. 2. Fiberization: The molten glass is extruded through small holes to form fibers. 3. Coating: Fibers are coated with a chemical solution to protect them and improve bonding with other materials. 4. Winding: The fibers are wound onto spools for further processing.

Advantages and Disadvantages

Advantages

• High strength-to-weight ratio
• Corrosion resistance
• Non-conductive

Disadvantages

• Brittle nature
• Can cause skin irritation
• Limited thermal resistance compared to some other materials
