Mercury-in-glass thermometer

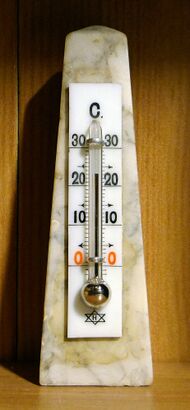

Mercury-in-glass thermometer for measurement of room temperature.

The mercury-in-glass thermometer, invented by Daniel Gabriel Fahrenheit in Amsterdam in 1714, is a classic device for temperature measurement. This article explores the design and function of the mercury-in-glass thermometer, its range of measurement, and its eventual replacement by safer alternatives.

Invention and Historical Significance

Daniel Gabriel Fahrenheit's invention of the mercury-in-glass thermometer was a significant milestone in the development of accurate temperature measurement tools. This invention laid the foundation for precise thermometry in various scientific fields.

Design and Mechanism

Mechanism of Mercury-in-Glass Thermometer

The thermometer consists of:

• A bulb containing mercury, which expands or contracts with temperature changes.
• A narrow glass tube, wherein a small volume change in the mercury bulb drives the mercury column along the tube.
• The space above the mercury column may be filled with nitrogen gas or be a partial vacuum.

Temperature Range and Limitations

The mercury-in-glass thermometer has specific operational limits:

• It cannot measure temperatures below -39˚C, the freezing point of mercury.
• It is ineffective above 356.7˚C, the boiling point of mercury.

Replacement by Alcohol Thermometers

Mercury thermometers have largely been replaced by alcohol thermometers due to:

• Safety concerns: Mercury is a toxic substance posing health and environmental risks.
• Cost: Alcohol thermometers are cheaper to produce.
• Wider temperature range: Alcohol does not freeze at temperatures as low as mercury.

Mercury Thermometers in Modern Use

While less common now, mercury thermometers are still used in some applications due to their high accuracy and durability.

Environmental and Safety Considerations

The environmental and health hazards of mercury have led to increased regulations on the use and disposal of mercury thermometers.

See Also

• Thermometry
• Daniel Gabriel Fahrenheit
• Environmental Impact of Mercury

References

• Johnson, M. K., & Smith, J. L. (2023). The Mercury-in-Glass Thermometer: History and Mechanism. Journal of Historical Instruments, 12(3), 234-240.
• Patel, S. K., & Green, T. J. (2022). From Mercury to Alcohol: Evolution of Thermometers. Instrumentation Science Review, 47(1), 115-122.
