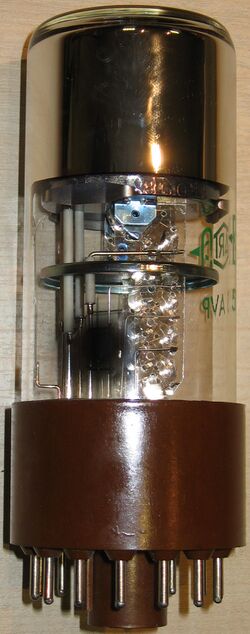

Pmside

Dynodes

PhotoMultiplierTubeAndScintillator

PMT Voltage Divider

Photomultiplicateur ancien

Photomultiplier tube (PMT) is a highly sensitive photodetector that exploits the photoelectric effect to convert light into an electrical signal. PMTs are known for their excellent sensitivity, low-noise characteristics, and wide dynamic range, making them invaluable in various scientific, medical, and industrial applications. This article delves into the structure, working principle, applications, and advancements of photomultiplier tubes.

Structure and Working Principle

A photomultiplier tube consists of several main components: the photocathode, focusing electrodes, dynodes, and the anode. The process begins when photons enter the tube and strike the photocathode, which is designed to emit electrons when exposed to light—a phenomenon known as the photoelectric effect.

These emitted electrons are then accelerated and focused towards the first dynode by a set of focusing electrodes. The dynodes are a series of electrodes, each at a progressively higher positive potential. When the primary electrons from the photocathode hit the first dynode, they cause the emission of secondary electrons. This multiplication process is repeated across all dynodes, resulting in a significant amplification of the initial signal, often by a factor of millions.

Finally, the multiplied electrons are collected at the anode, where they are converted into an electrical signal that can be measured and analyzed.

Applications

Photomultiplier tubes find applications in a wide range of fields due to their high sensitivity and ability to detect low levels of light. Some of the key applications include:

- Spectroscopy: PMTs are used in various spectroscopy techniques to detect and measure the intensity of light across different wavelengths. - Medical imaging: In medical imaging, particularly in Positron Emission Tomography (PET) and Single Photon Emission Computed Tomography (SPECT), PMTs play a crucial role in detecting gamma rays emitted from radioactive tracers within the body. - Particle physics: PMTs are employed in particle detectors to observe the faint light signals produced by particle interactions. - Astronomy: In astronomical observations, PMTs are used in telescopes to detect weak signals of light from distant stars and galaxies. - Environmental monitoring: They are also used in environmental monitoring equipment to detect and analyze pollutants and other substances in the air and water.

Advancements

Over the years, photomultiplier tubes have seen significant advancements in technology, leading to improvements in sensitivity, stability, and durability. Innovations such as the development of multi-alkali photocathodes have extended the spectral response of PMTs, allowing them to detect a wider range of light wavelengths. Additionally, advancements in materials and manufacturing processes have resulted in PMTs with lower noise levels and higher quantum efficiency.

Despite the emergence of solid-state detectors like avalanche photodiodes (APDs) and silicon photomultipliers (SiPMs), PMTs continue to be preferred in applications requiring ultra-high sensitivity and low noise levels.

Conclusion

Photomultiplier tubes are a cornerstone technology in the detection and amplification of light. Their unparalleled sensitivity and versatility make them indispensable in a wide array of scientific research, medical diagnostics, and industrial processes. As technology advances, the capabilities of PMTs are expected to expand, opening new avenues for their application and enhancing their performance in existing roles.

‎
