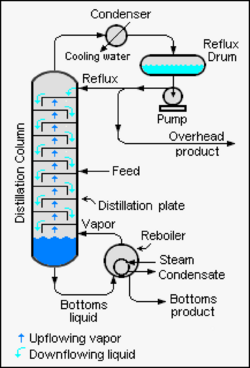

Continuous Binary Fractional Distillation

Crude Oil Distillation

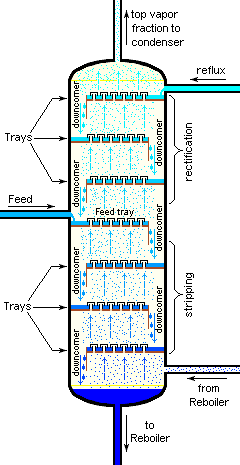

Tray Distillation Tower

Fractional distillation is a chemical engineering process used to separate a mixture of substances into its component parts, or fractions, based on the differences in their boiling points. This technique is an extension of distillation, a method that exploits the boiling point differences of substances to separate them. Fractional distillation is particularly important in the separation of liquid mixtures and is widely used in industries such as petroleum refining, chemical production, and the creation of alcoholic beverages.

Process

The process of fractional distillation involves the heating of a liquid mixture to vaporize it, with the vapor then being cooled and condensed back into a liquid. The apparatus used for this process is called a fractionating column, which is packed with materials to provide a large surface area for vapor condensation and evaporation. As the vapor rises through the column, it cools and condenses on the packing material. The component with the lower boiling point vaporizes again and rises, while the component with the higher boiling point condenses and falls. This repeated vaporization and condensation process is called rectification.

The efficiency of the separation is determined by the height of the fractionating column and the number of theoretical plates or trays within the column. A higher number of plates allows for better separation of the components.

Applications

Fractional distillation is crucial in various industries for the purification and separation of chemicals. In the petroleum industry, it is used to separate crude oil into its components, such as gasoline, kerosene, and diesel fuel. In the chemical industry, it helps in obtaining pure substances from complex mixtures. The production of alcoholic beverages, such as whiskey and vodka, also relies on fractional distillation to separate alcohol from water and other components.

Fractionating Columns

The design of fractionating columns can vary depending on the mixture being separated and the purity requirements of the end product. Common types of fractionating columns include:

- Packed Column: Used for relatively low to moderate throughput. It contains packing material that provides a large surface area for vapor-liquid contact. - Plate Column: Contains trays or plates where the vapor condenses and re-evaporates as it moves up the column, allowing for efficient separation. - Spiral Column: A compact design used for specific applications, where the spiral plates provide efficient separation with a smaller column height.

Advantages and Limitations

The main advantage of fractional distillation is its ability to separate components of a mixture in a relatively pure form. However, it requires significant energy input to maintain the temperature for vaporization. The process can also be time-consuming and may not be suitable for heat-sensitive materials due to the high temperatures involved.

Conclusion

Fractional distillation is a vital process in many industrial applications, offering a method to separate complex mixtures into their individual components. Its efficiency and effectiveness have made it a cornerstone technique in the fields of petroleum refining, chemical manufacturing, and the production of alcoholic beverages.

‎
